Yuxing computerized multi needle quilting machine for bedding product
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 1400r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | As Request | Power: | 220v,380v |
| Dimension(L*W*H): | 4730*1750*1700mm | Weight: | 5000 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Belongs To: | High Efficiency Industrial Bed Sheet Quilting Machine |

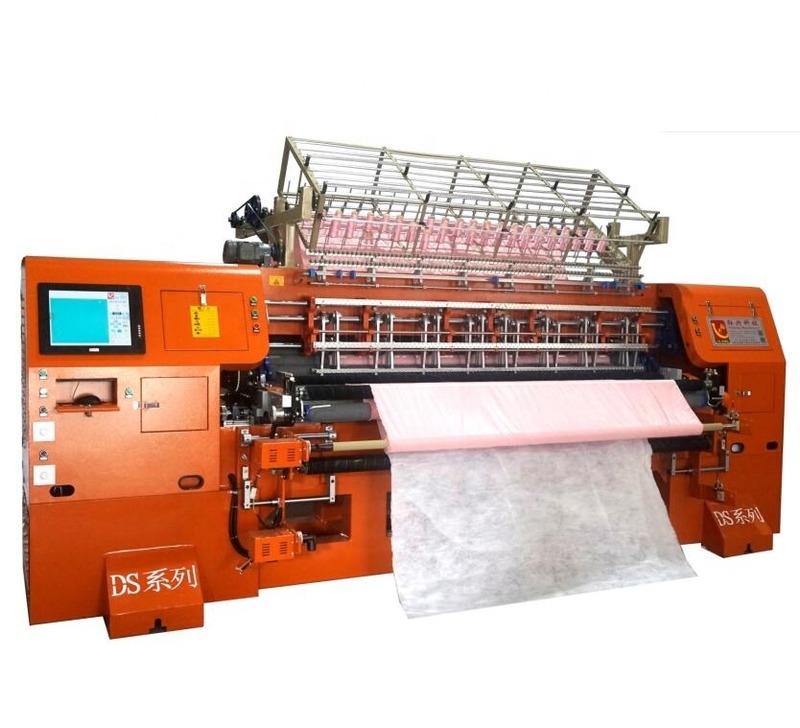

Computerized shuttle(lock stitch) multi-needle quilting machine
YXS-96-3DS
Product Description
Quilting Machine component: use in Delta transducer,Japan bearing,Korean shuttle and German needles.
Specification:
| Product Name | High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine |
| Model | YXS-96-3E |
| Size(L*W*H) | 4730*1750*1700mm |
| Weight | 6800kg |
| Quilting width | 2450mm |
| Needle bar space | 3E3''+3''(152.4mm) |
| Quilting thickness | ≤50mm |
| Rolling speed | 500-1400r/min |
| Output | 0-280m/hour |
| Needle type | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 7.5KW |
Function
1. Pattern editing is easy to learn.
2. Have the ringing notice when start machine.
3. The infrared system, make your operation more safe.
4. Principal axis uses the frequency conversion device.
5. Saddling rack and rollers are driven by servo equipment.
6. Adopt the advanced computer and mechanistic technology.
7. Can 360° random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.
10. Adjust speed by the computer system, the speed can reach 1400r/min, the stitch can be set between 2-8 mm.
11. Needle bars running with needle bar frame, do not need to add extra lube, avoid the materials be soiled by lube.
12. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE ISO9001:2008 approved.
Company Information
Our company was established in 2002,is specialized in manufacturing computerized multi-needle quilting machine,cutting machine and bobbin winding machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome to visit our factory any time!!^_^
